Room Tiles

  • Room Tile Basics
  • Room Tile Controls and Status for Pucks and Smart Vents
  • Room Tile Controls and Status for Mini Splits and IR Devices

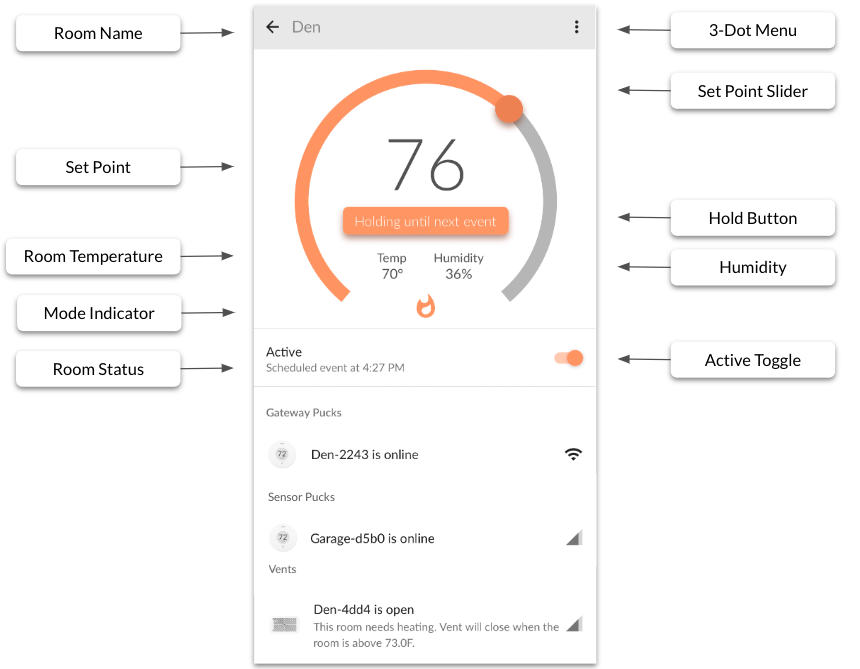

Room Tile Basics

  • Room Name: to change tap the 3-dot menu and go to Settings->Room Info
  • Set Point: current room set point
  • Room Temperature: room temperature is updated about every 60 seconds - if there are more than one temperature sensing devices in the room, Flair will display the average temperature reading
  • Mode Indicator: the color of the set point circle, slider and icon will change to indicate the current mode (blue snowflake for cooling and orange flame for heating)
  • Room Status: lets you know the current Active / Inactive status of the room whether set by a schedule, room sensor occupancy, or by adjusting the set point through the app or the Puck
  • 3-Dot Menu: tap to view room statistics and manage room settings (change room name, manage zones or devices, or delete the room)
  • Set Point Slider: drag the slider to adjust the room set point - this will create a hold and the default hold duration is "Until next schedule event" (this can be changed in Home Settings->System Settings)
  • Hold Button: tap to clear or adjust the room hold
  • Humidity: humidity is updated about every 60 seconds - if there are more than one humidity sensing devices in the room, Flair will display the average humidity reading
  • Active Toggle: tap to set the room Active or Inactive

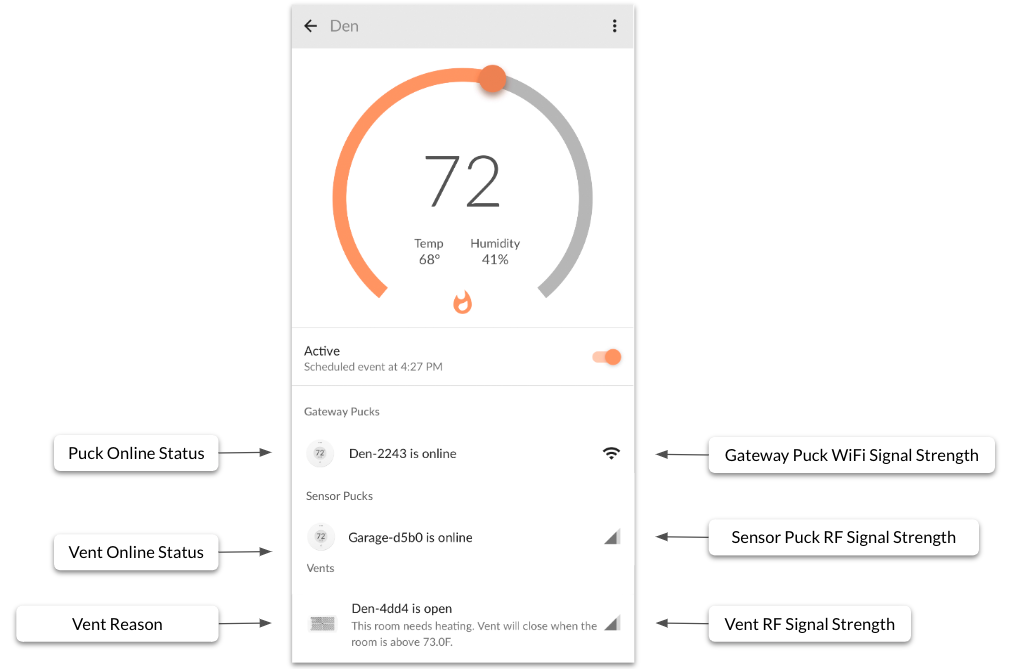

Room Tile Status for Pucks and Smart Vents

  • Puck Online Status: indicates a Puck's online / offline status
  • Vent Online Statue: indicates a Vent's online / offline status
  • Vent Reason: explains why a Vent is opened or closed
  • Gateway Puck WiFi Signal Strength: Gateway Pucks are connected to WiFi and this icon represents the current WiFi signal strength (more bars = stronger signal)
  • Sensor Puck RF Signal Strength: Sensor Pucks are connected to Gateway Pucks via RF (radio frequency) signals and this icon represents the current RF signal strength (more bars = stronger signal)
  • Vent RF Signal Strength: Vents are connected to Gateway Pucks via RF (radio frequency) signals and this icon represents the current RF signal strength (more bars = stronger signal)

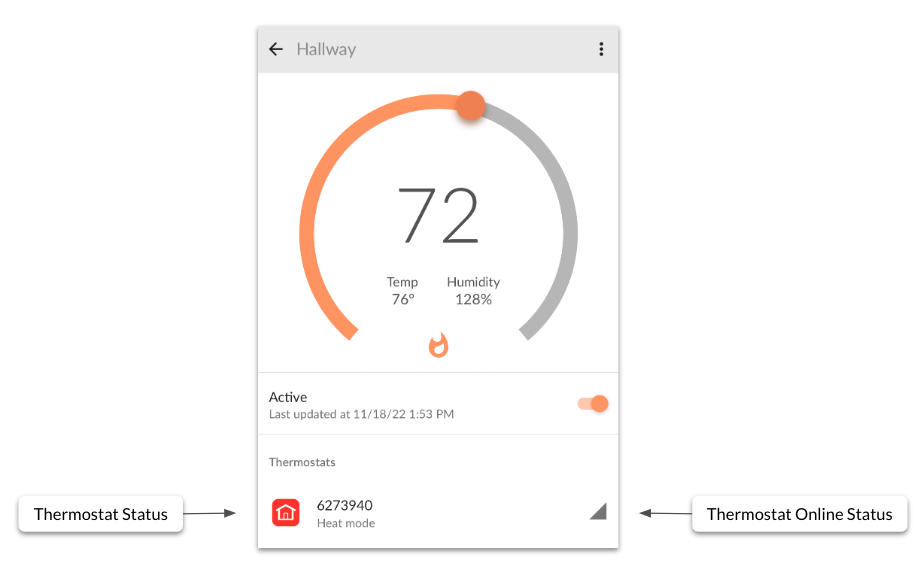

Room Tile Status for Thermostats

  • Thermostat Status: current mode of your thermostat
  • Thermostat Online Status: current online / offline status of the thermostat

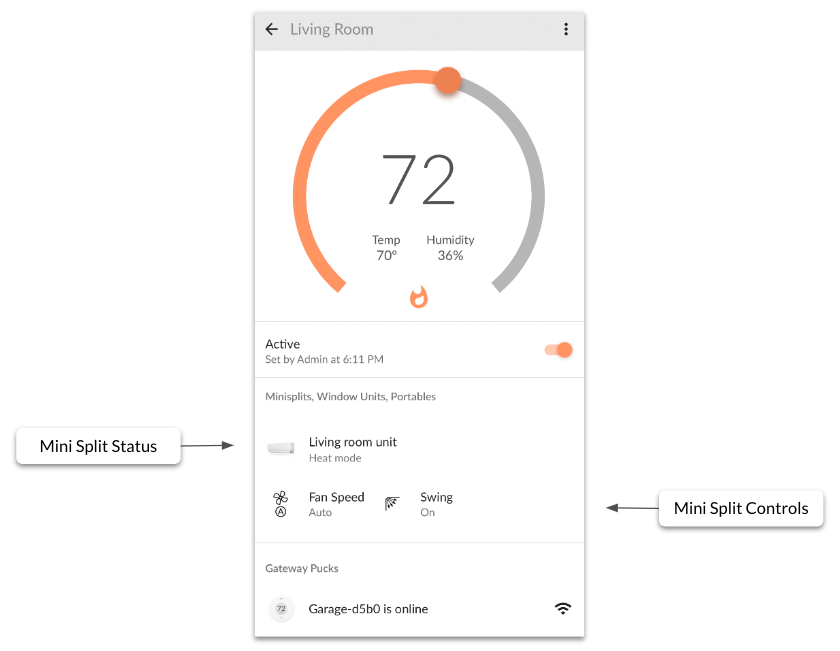

Room Tile Controls and Status for Mini Splits and IR Devices

  • Mini Split Status: explains the current status and mode of mini split
  • Mini Split Controls: Flair will display the controls supported by your mini split or IR device

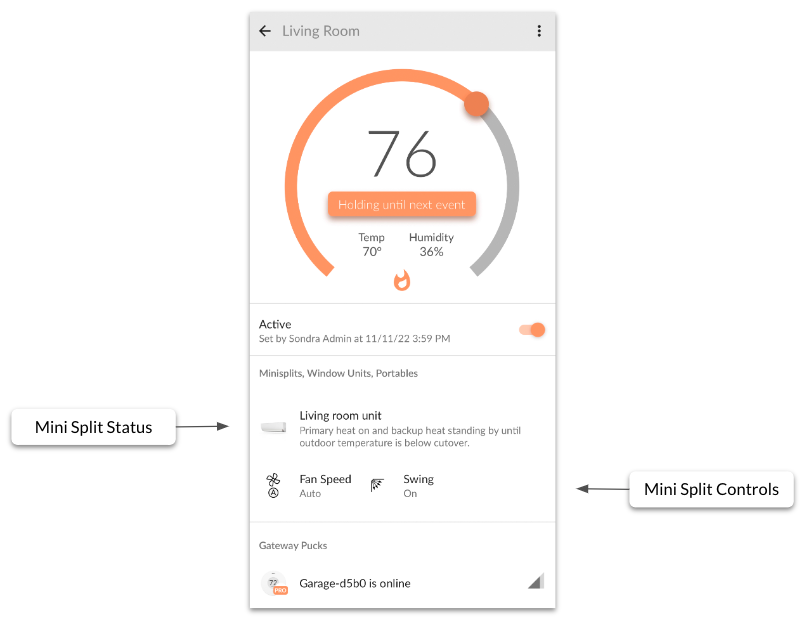

Room Tile Controls and Status for Secondary Heat

  • Mini Split Status: current status of the mini split as a primary heat source
  • Mini Split Controls: Flair will display the controls supported by your mini split

Note: Pucks will display an orange "Pro" badge for systems configured with Secondary Heat.

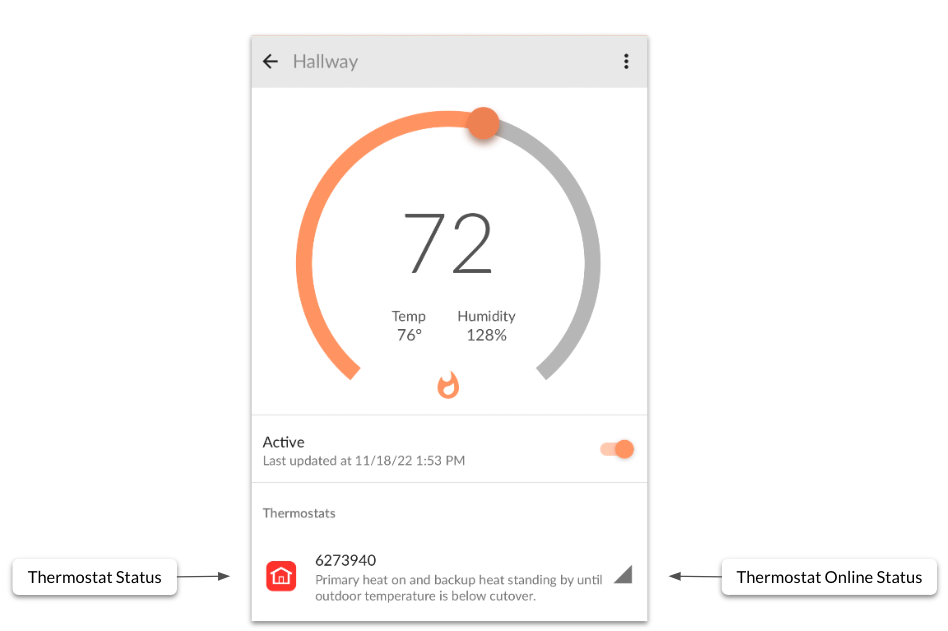

  • Thermostat Status: current status of the thermostat as a secondary heat source
  • Thermostat Online Status: current online / offline status of the thermostat
